Product Overview

To clear an area of debris, the operator scoops up the debris and, using the loader’s auxiliary hydraulic controls, spins the barrel.

This spinning motion causes the debris to collide inside the barrel which knocks off excess soil and dirt.

Any soil or debris smaller than 2.5” (6.35 cm) in diameter will fall between the bars, leaving only debris larger than 2.5” (6.35 cm) in the barrel.

It’s ideal for use in several industries including agricultural, industrial, maintenance, mining, landscaping and forestry

Details

Features:

• Fits universal skid steer quick attach

• Heavy duty direct drive motor
•  30" Drum Dia
• Heavy duty direct drive motor with a 4.5" (114mm) dia spindle with 20,000 lbs capacity on hub。

• The rods are 0.7"(18mm) in diameter

• It can handle over a ton of material per scoop and screen rock from50mm - 915mm dia.
• Scoops up stones & leaves soil on the ground

• One way spin direction
•  All price include shipping

Specifications:

• Drum Rods: 0.7" dia

• Drum Deep: 38.5"

• Drum Dia: 30" Dia

• Dimension:55*48.4*30 in
• Drum rolling speed: 35-40r/min

• Capacity: 900lb

• Max Load: 0.2m³

• Rock Size: approx. 25" to 28"

• Flow Required: 80Liter/min
• Working pressure: 14Mpa
• Weight: 791lb

Shipping Information:

• This product is packed in a metal crate shipping box

• Package Size (LxWxH): 61.3 x 49.1 x 36.6in

• Package Weight: 880lb

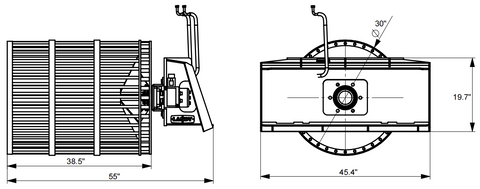

Technical Drawing:

Inner Width 44.9“ Universal Skid Steer Quick Attach：

ATTENTION: Please check the Mount Plate can fit your loader before purchase!

Due to the buyer's failure to verify the size of the mount plate before purchasing, the product cannot match the loader and needs to be replaced. Our company does not accept returns unless the buyer compensates the seller for the round-trip shipping cost. For refunds, we will not refund product fees unless we receive the product in our warehouse and confirm that it can be resold.

Inner Width 48“ Universal Skid Steer Quick Attach：

ATTENTION: Please check the Mount Plate can fit your loader before purchase!

Due to the buyer's failure to verify the size of the mount plate before purchasing, the product cannot match the loader and needs to be replaced. Our company does not accept returns unless the buyer compensates the seller for the round-trip shipping cost. For refunds, we will not refund product fees unless we receive the product in our warehouse and confirm that it can be resold.
