Product Overview

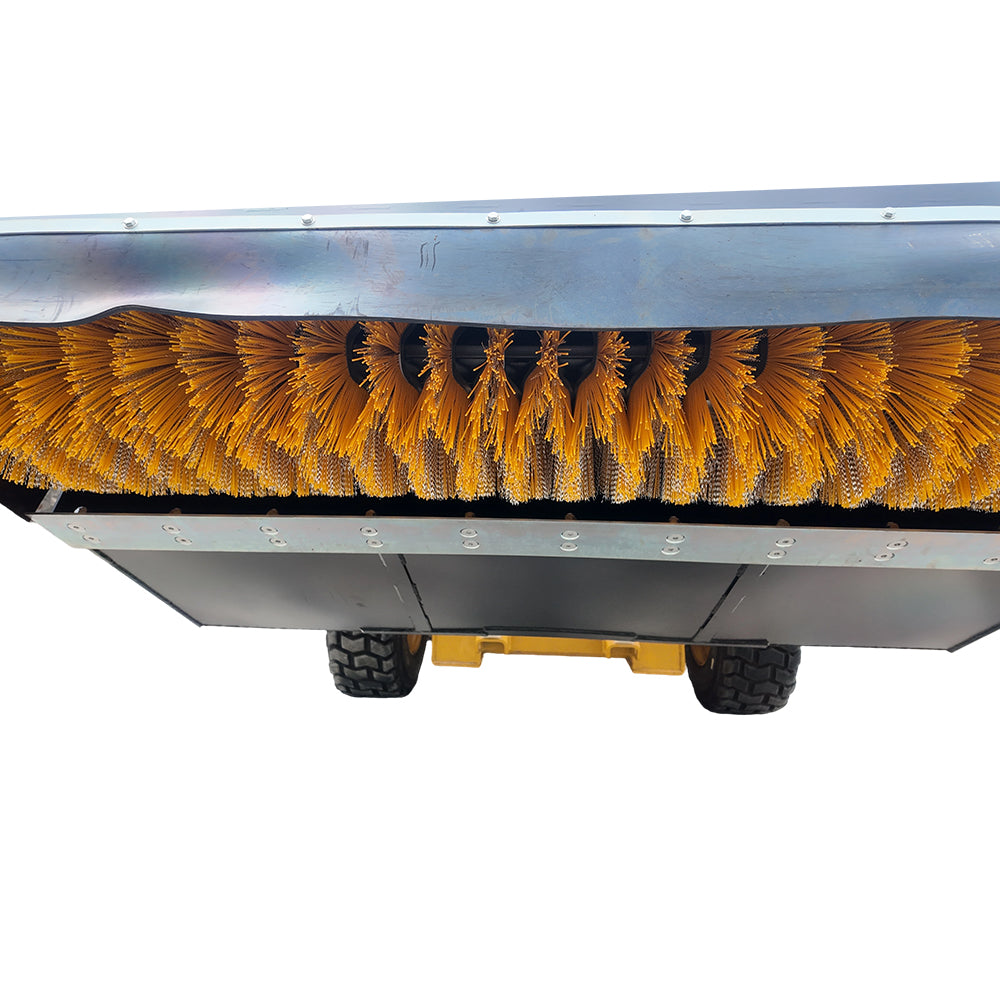

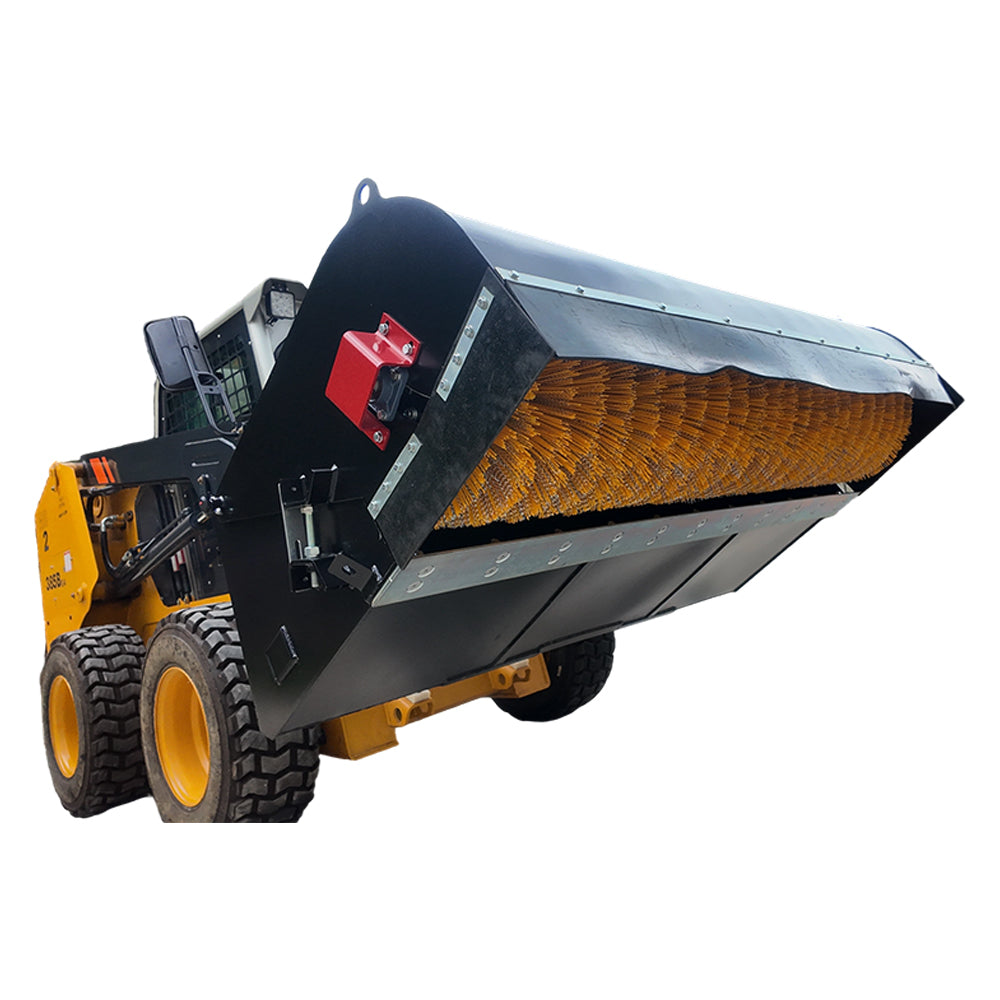

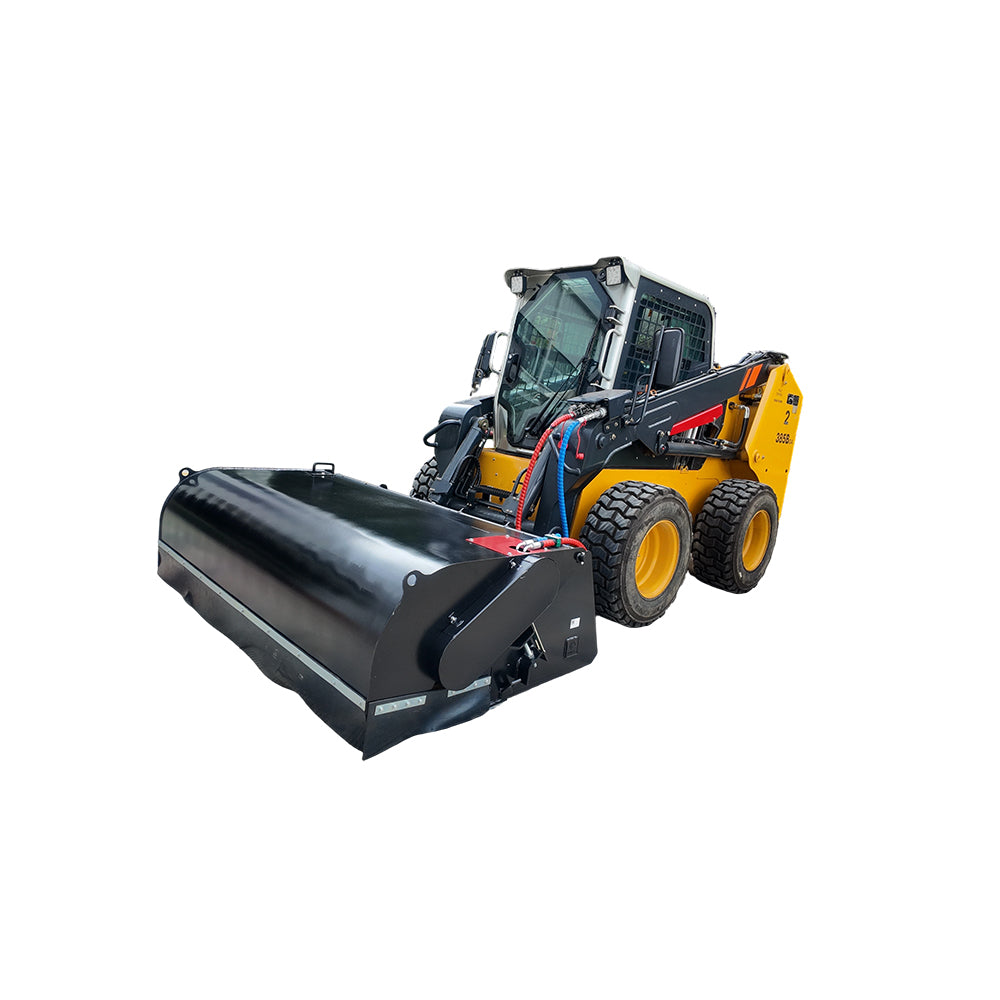

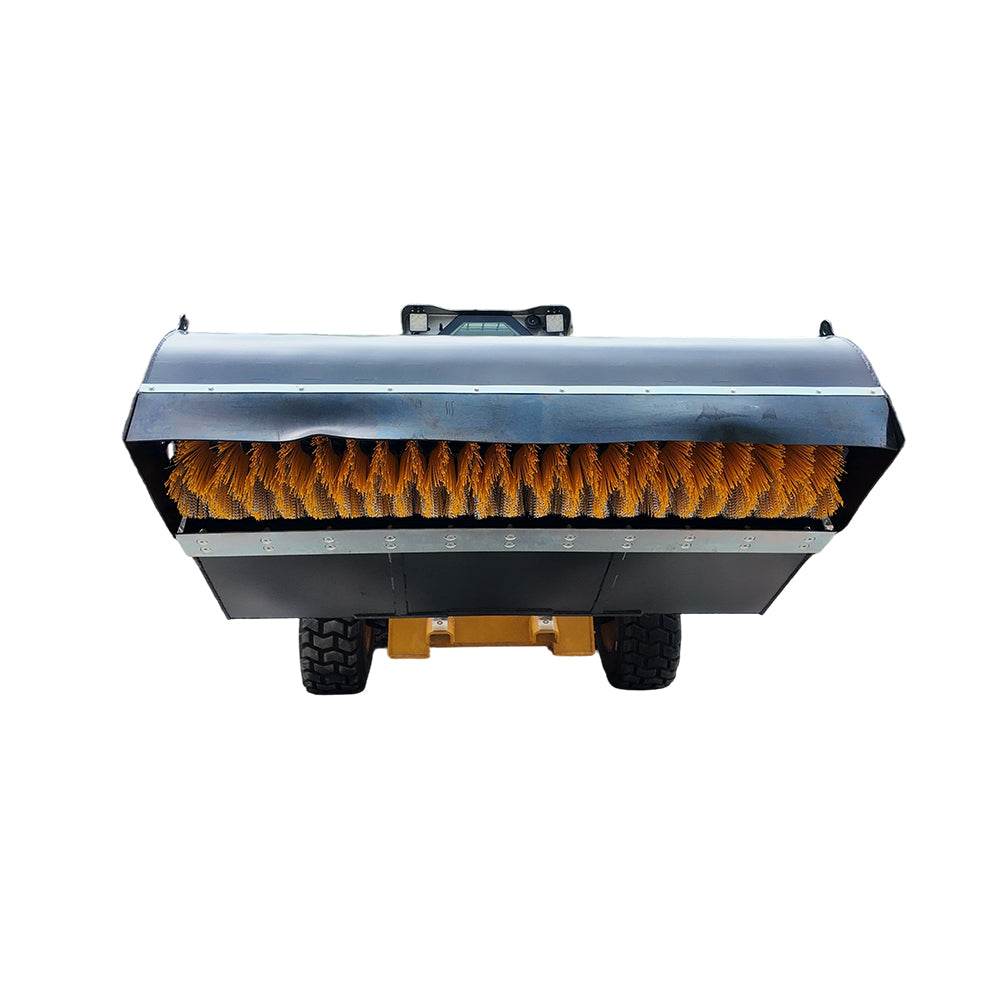

The LANDY 83" Heavy Duty Pick-Up Box Broom Sweeper is a 3-in-1 attachment that sweeps, collects, and dumps dirt, gravel, and debris in a single pass. Ideal for construction sites, parking lots, industrial yards, and municipal maintenance jobs. The 21.6" diameter convoluted brush delivers powerful sweeping action, while the integrated collection box holds significantly more debris volume with less recirculation than conventional sweepers. Bi-directional operation sweeps forward to pick up fine dirt and reverses to collect rock and construction debris. To dump, simply lift and tilt — no chains required.

Use Cases

- Construction site cleanup (gravel, sand, debris)
- Parking lot and warehouse floor sweeping
- Municipal road and sidewalk maintenance
- Farm and agricultural yard cleanup
- Industrial facility maintenance

Details

Features:

- Heavy Duty construction for demanding job sites
- Fits Universal Skid Steer Quick Attach
- 21.6" Diameter Convoluted Brush (45 brush segments)
- Bi-directional Broom: sweeps forward & reverses to collect debris
- Quick brush change without breaking hydraulic lines
- Integrated pick-up box holds more debris, less recirculation
- Lift & tilt to dump — no chains required
- ✅ Free Shipping — Ships from USA Warehouse (Cerritos, CA)

Compatible Brands:

Fits most skid steer loaders with Universal Quick Attach, including:
- Bobcat, Case, Caterpillar (CAT), John Deere, Kubota, New Holland, Gehl, Mustang, Terex, ASV, Takeuchi, Volvo, Wacker Neuson, and more.
⚠️ Inner Width of Mount Plate: 44.9" — Please verify compatibility before purchase.

Hydraulic Requirements:

- Hydraulic Flow: 15–25 GPM (recommended)
- Operating Pressure: up to 3,000 PSI
- Standard hydraulic motor — motor has been upgraded for improved performance

Specifications:

- Sweeping Width: 83"
- Unit Size: 88.6 x 50.3 x 23.6 in
- Unit Weight: 1,045.3 lb
- Package Size (LxWxH): 89.5 x 54.2 x 31.8 in
- Package Weight: 1,134.2 lb
- SKU: S-BB2110(83IN)-MP1140-LANDY

Technical Drawing:

Inner Width 44.9" Universal Skid Steer Quick Attach:

ATTENTION: Please check the Mount Plate can fit your loader before purchase!

Due to the buyer's failure to verify the size of the mount plate before purchasing, the product cannot match the loader and needs to be replaced. Our company does not accept returns unless the buyer compensates the seller for the round-trip shipping cost. For refunds, we will not refund product fees unless we receive the product in our warehouse and confirm that it can be resold.
