Product Overview

The system easily and securely attaches to skid steers with the quick attach mounting system, and you can use the chain buckle with loop and chain retainer to tie down loads using 1/2” thick chains or ropes.
At the end of the forks there are 3/4" shank holes for 2” ball points you can use for towing or lifting and can be used with 2” trailer hitch balls. Make sure your ball has a 3/4" shank, not 1".

Details

Features:

- Transport goods easily
- Easy installation and quick operation
- Chain buckle accepts up to 1/2” thick chain
- Universal Skid Steer style hookup
- Plasma cut for durability
- All price include shipping

Specification:

- Capacity: 2600 lb
- Total Weight: 258 lb
- Frame Width: 49 in
- Frame Weight: 170 lb
- Fork: 4x2x46 in
- Fork Weight: 88 lb

- Package Size (LxWxH): 55.7 x 36.1 x 14.2 in
- Package Weight: 311 lb

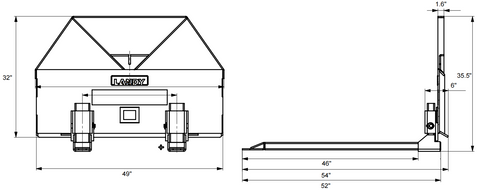

Technical Drawing:

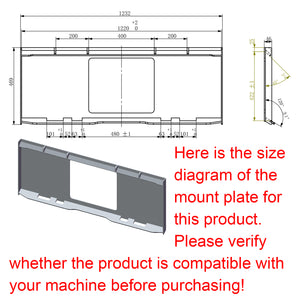

Inner Width 44.8“ Universal Skid Steer Quick Attach：

ATTENTION: Please check the Mount Plate can fit your loader before purchase!

Due to the buyer's failure to verify the size of the mount plate before purchasing, the product cannot match the loader and needs to be replaced. Our company does not accept returns unless the buyer compensates the seller for the round-trip shipping cost. For refunds, we will not refund product fees unless we receive the product in our warehouse and confirm that it can be resold.
