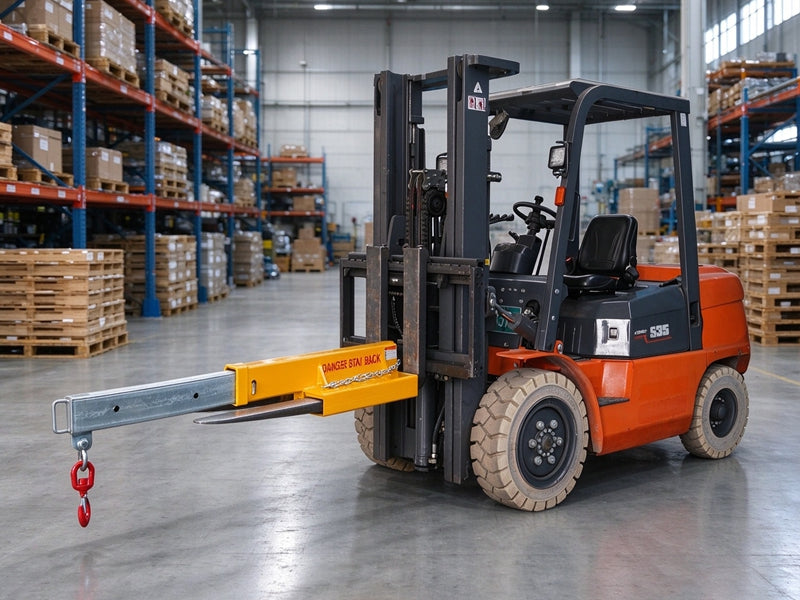

Need to lift a machinery component that cannot rest on pallet forks? A short forklift jib boom adds a lifting point to a compatible forklift, helping you handle suitable suspended loads in workshops, warehouses and maintenance areas.
Choosing one takes more than comparing maximum capacity ratings. The required reach, fork dimensions, load weight and forklift’s approved capacity all matter. This guide explains where a short jib can be useful and what to check before choosing the LANDY FJCS45.
What Is a Short Forklift Jib Boom Used For?
Standard forks support a load from underneath. A jib boom provides a projecting lifting point for use with suitable, rated lifting accessories. This can be useful when a component needs to be lifted from an approved lifting point rather than supported on a pallet.
- Handling machinery components in a workshop.
- Positioning equipment during maintenance or installation.
- Lifting suitable irregularly shaped industrial items.
- Supporting material-handling tasks in warehouse and production areas.
A short jib can be a practical choice when the job does not require a longer boom. However, a compact attachment does not remove the need for adequate clearance or a lift plan. It is not a substitute for a dedicated crane when the task exceeds the approved capabilities of the forklift and attachment.
LANDY FJCS45: Reach, Mounting and Key Specifications
The LANDY FJCS45 short jib uses a double-fork mounting design. Fork pockets accept the forklift’s forks, and a safety chain secures the attachment as directed by the manufacturer. Verify the fit against your actual fork dimensions rather than assuming compatibility based on the forklift brand.
The product specifications listed for this model are:
- Maximum listed capacity at the first position: 9,900 lb.
- Listed capacity at full extension: 1,650 lb.
- Fully extended reach: 75 inches.
- Attachment weight: 227 lb.
- Fork pocket dimensions: 7.2 × 2.5 inches.
- Fork pocket center spacing: 11.4 inches.
Confirm the current specifications, load chart and installation instructions before purchase and use.
Why 9,900 lb Does Not Apply at Every Boom Position
The 9,900 lb figure is the attachment’s listed maximum at the first position, not a capacity rating for every lift. At full extension, its listed capacity decreases to 1,650 lb.
Moving the lifting point farther from the forklift increases the load’s leverage. The forklift’s allowable capacity also depends on the installed attachment, load center and operating configuration. The attachment’s maximum rating does not establish how much your forklift can lift.
Before planning a lift, check the manufacturer’s load chart for the selected boom position and the forklift’s approved capacity with the attachment installed. The operation must stay within every applicable limit, including the ratings of the lifting accessories. Never use the 9,900 lb headline figure in place of these checks.
Four Checks Before Buying a Forklift Jib Boom
1. Check Fork Fit and Attachment Retention
Compare your fork width, thickness and spacing with the listed pocket dimensions and installation requirements. Confirm that the attachment can be installed and secured exactly as instructed. A forklift brand name alone is not enough to confirm compatibility.
2. Confirm the Forklift’s Approved Capacity
The attachment’s weight and the suspended load’s position change the lifting configuration. Confirm the forklift manufacturer’s approved capacity for the intended setup. Do not assume the truck’s standard rating remains available after fitting a jib.
3. Match Load Weight to the Required Reach
Determine the actual load weight, its center of gravity and the required lifting point. Then identify the boom position needed for the task and check its rated capacity. Use appropriate, rated lifting accessories and account for their weight when assessing the lift.
4. Measure Working Clearance
Check headroom, nearby machinery and the space needed to position the load. A shorter boom may suit a compact workspace, but the forklift, attachment and suspended load still need sufficient clearance for the planned operation.
Plan for Suspended-Load Handling
A suspended load can swing, shift or rotate, so it handles differently from a pallet supported on forks. Use the jib only in accordance with the forklift and attachment manufacturers’ instructions and your workplace’s safety procedures.
- Inspect the attachment, retention components and lifting accessories before use.
- Verify the load weight and all applicable capacity limits for the intended configuration.
- Secure the attachment and connect the load as instructed.
- Keep people clear of the lifting area and never allow anyone beneath a suspended load.
- Avoid abrupt movements that could cause the load to swing.
- Do not assume travel with a suspended load is permitted; follow the equipment manufacturers’ instructions for the specific operation.
- Stop if the load is unstable, clearance is inadequate or the task exceeds the approved equipment limits.
This guide is an overview, not a replacement for operator training, the equipment manuals or a task-specific lift plan.
Is a Short Forklift Jib Boom Right for Your Job?
A short jib can expand the lifting options of a compatible forklift when standard pallet forks do not suit the load. The best choice starts with the task: how much the load weighs, where it must be lifted from and how much reach is actually needed.
For the LANDY FJCS45, pay particular attention to the difference between the first-position and fully extended capacity ratings. Check fork fit and your forklift’s approved configuration before ordering.
View the LANDY Forklift Short Mobile Crane Jib Boom to review the product details and compare them with your lifting requirements.
